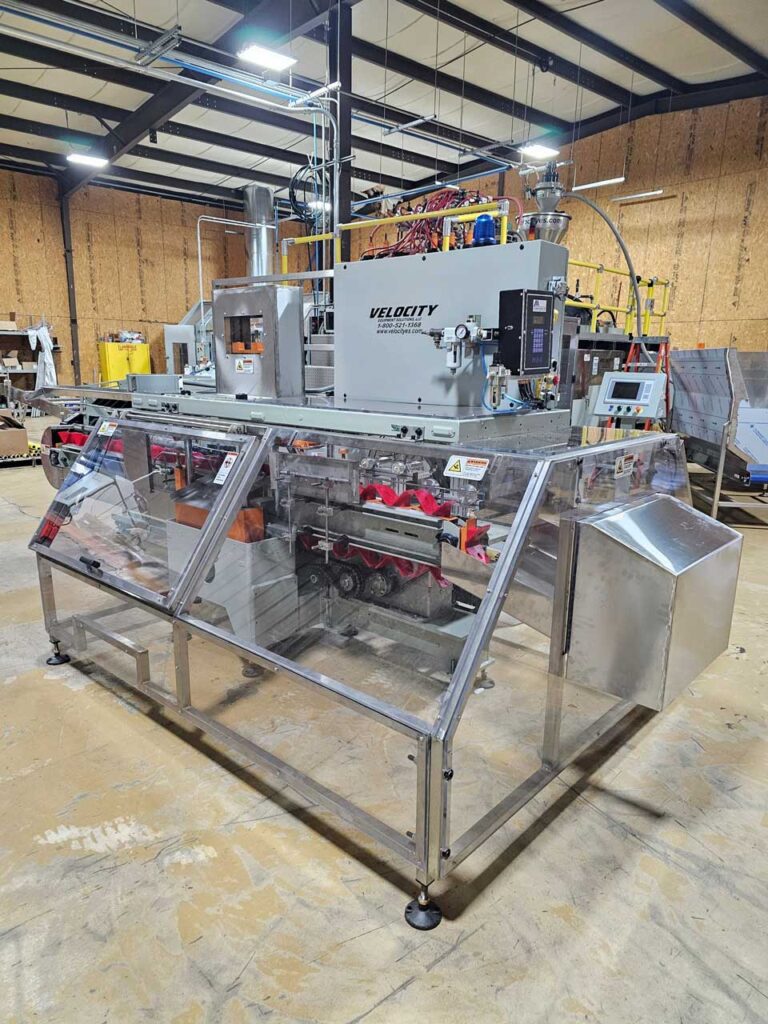

Trimmer Base Assembly

Trimmer Base Assembly Drawing View A

Trimmer Base Assembly Drawing View B

Trimmer Base Assembly ~ ASSY-903

No.DescriptionReq'd QtyVelocity Part Number
1Trimmer Bearing (#A243848)81100-0165
2Flange Bearing (MFG-32 BRG 2-2)21100-0186
3Support Leveler41725-0049
4Trimmer Platen2M610-014
5Trimmer Tie Rods4M610-042
6Bearing Retainer Plate8M610-043
7Trimmer Top Plate1M610-044
8S Bar Adjustment Block2M610-045
9S Bar Adjustment Stopper2M610-046
10Proximity Switch Mount1M610-096
11Trimmer Base Weldment1M610-240-0
12S.H.C.S. #10-32 x 5/8" LG32MP000100013
13S.H.C.S. 1/4-20 x 3/4" LG2MP000101004
14S.H.C.S. 7/16-14 x 1 1/4" LG8MP000104003
15S.H.C.S. 1/2-13 x 7" LG4MP00005018
161/4" Plain Washer2MP000150003
173/4"-10 Hex Nut12MP000150014
181 1/4"-7 Hex Nut8MP000150021
191/4" Lock Washer2MP000151007
201/2" Lock Washer4MP000151007
217/16" Lock Washer8MP000152006
